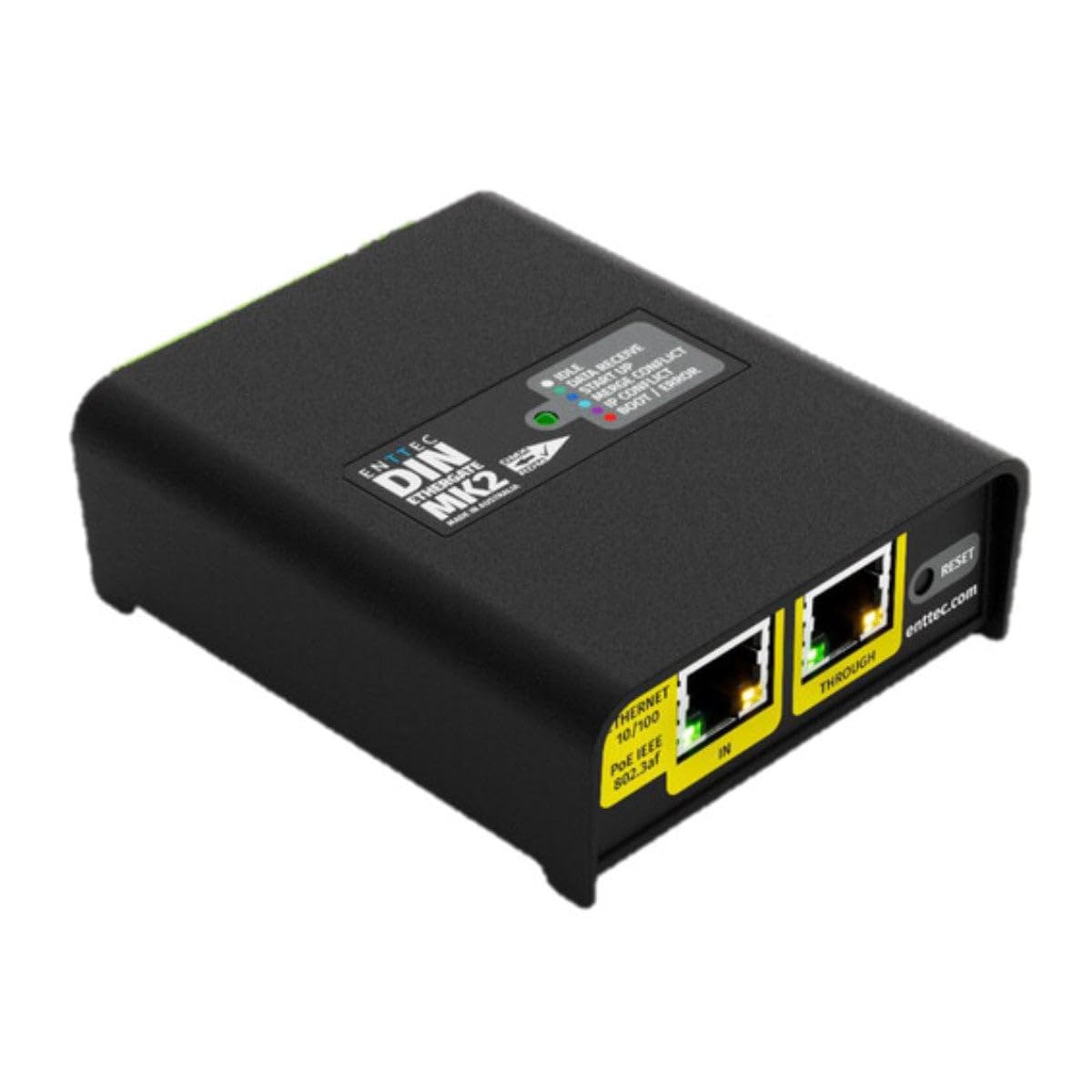

ENTTEC DIN Ethergate Mk2 POE 71031 2 Universe Bi-Directional Ethernet to Dual DMX RDM Converter, DMX500K Compatible

Brand: Enttec

Color: Black

Features:

• Easy web page configuration: The configuration is managed through the localhost web interface to simplify commissioning and updates as well as to allow the DIN Ethergate Mk2 to be configured from any computer on your network.

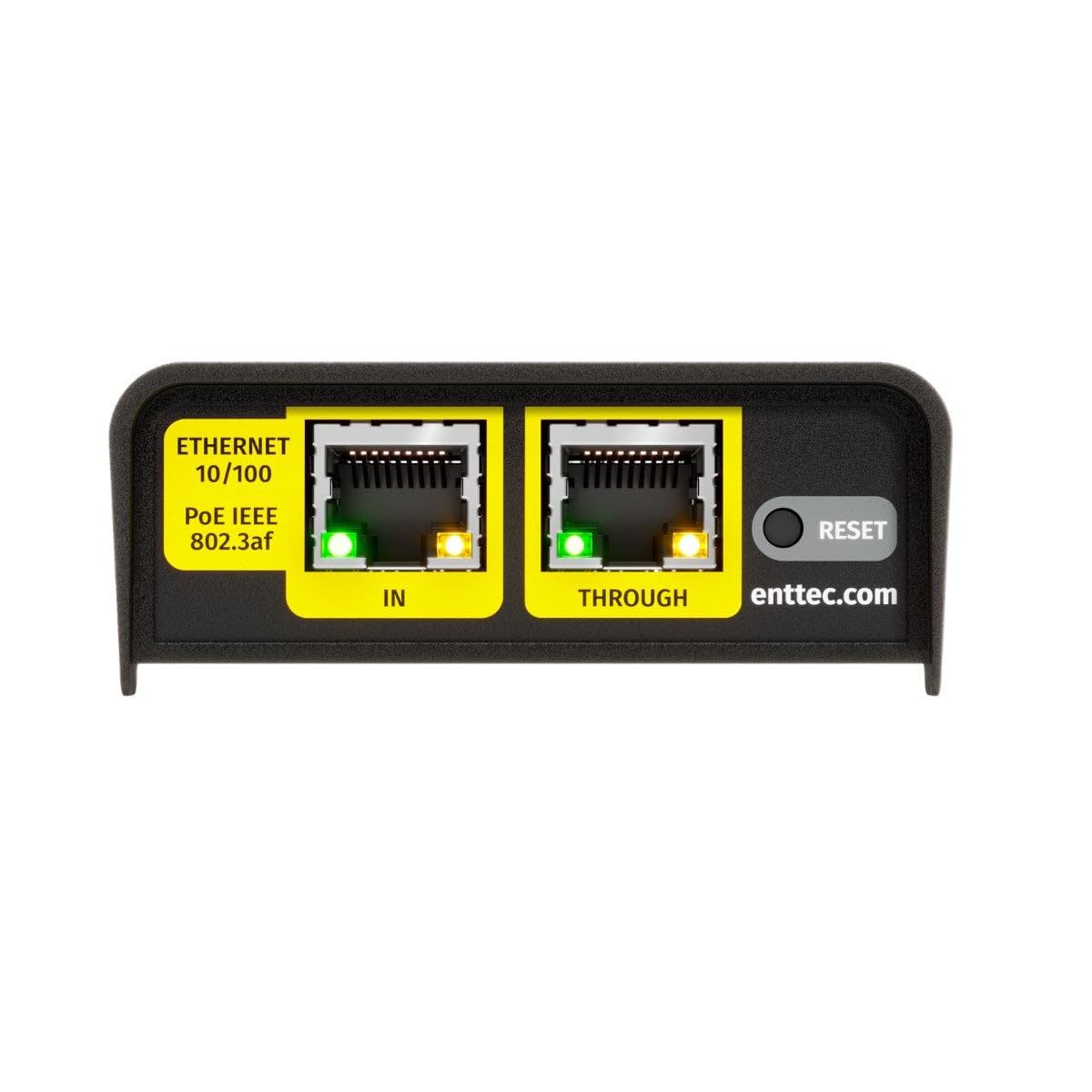

• Flexible power options: Power the DIN Ethergate using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input. NOTE: when daisy-chained in series, only the first device will receive PoE. Subsequent devices require PoE injector individually to be powered via an Ethernet port.

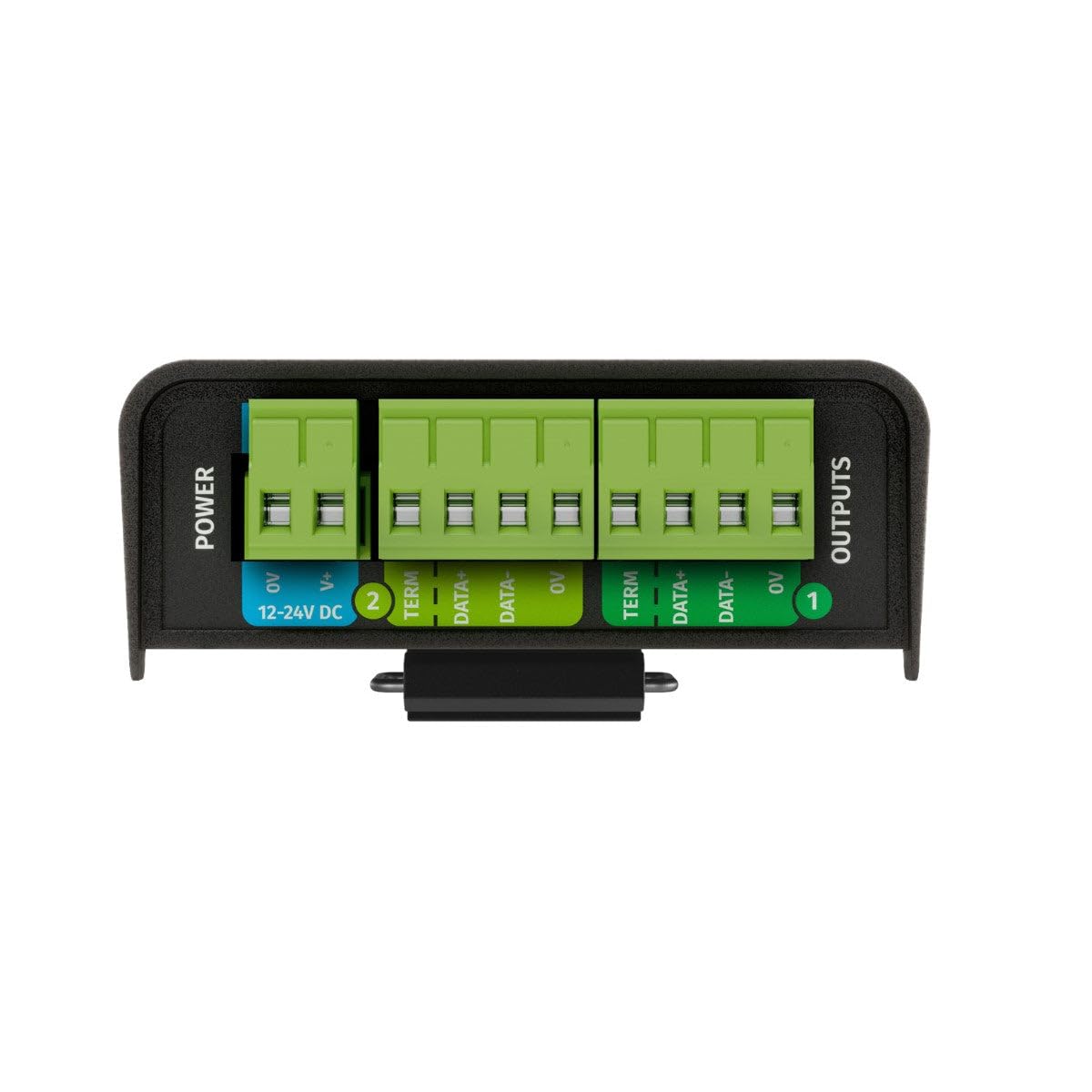

• Time-saving + installer-friendly: Our Ethernet to DMX converter is packed with installer-friendly features including pluggable terminal connectors and inbuilt DMX termination to simplify wiring. Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the web interface to troubleshoot your installation. Upon receiving power, the device is ready to go within seconds.
• Sync mode: All ENTTEC Ethernet hardware accepts sACN Sync as well as ArtSync to fully synchronize Art-Net data for all output ports and across your installation when receiving Art-Net from the same source.

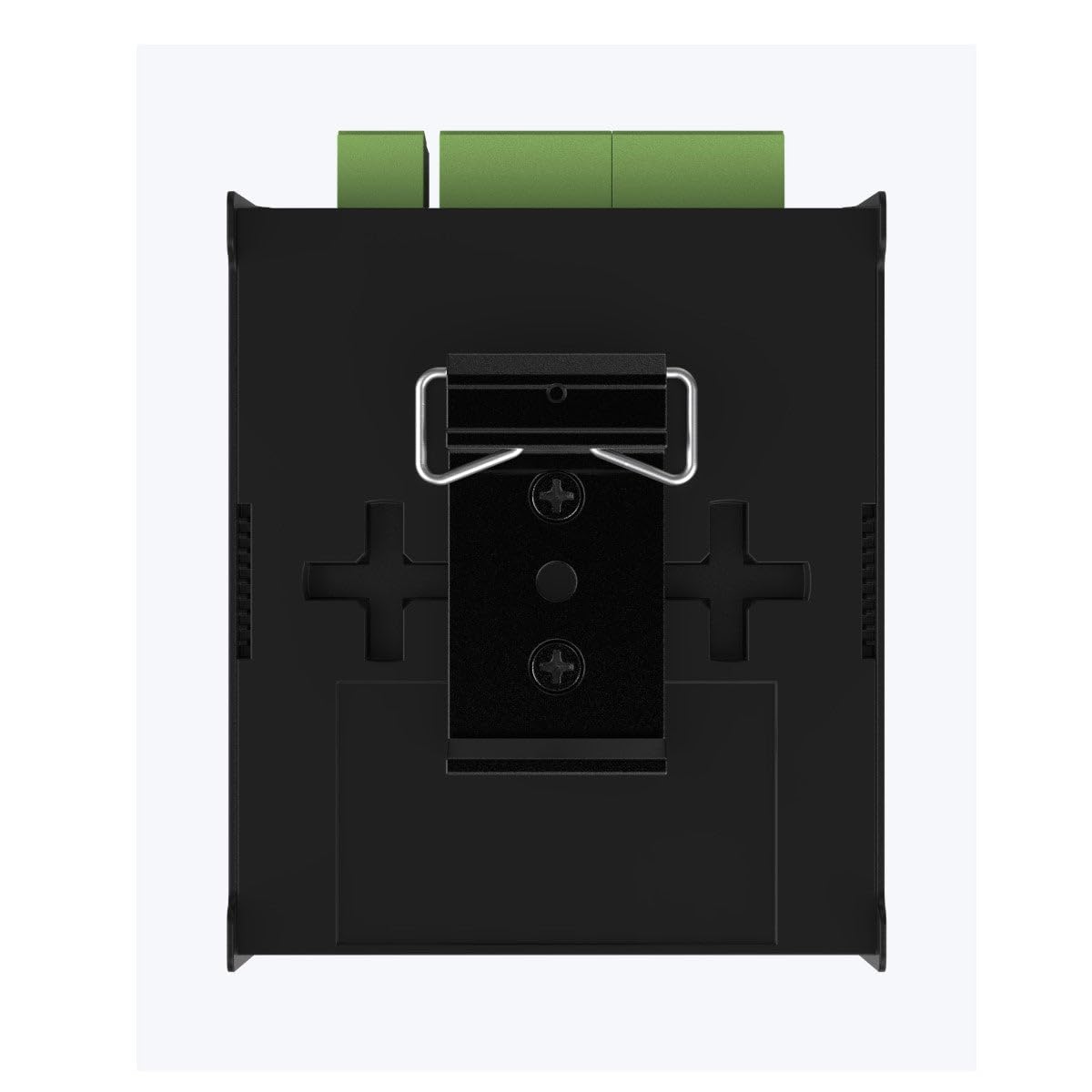

• Choice of mounting options: Featuring a 4-DIN-module electrically-insulated housing, the DIN Ethergate MK2’s slim form includes a DIN-rail clip enabling attachment to a TS35 DIN-rail alongside the option to wall mount the device in any orientation.
• Overdrive Mode: Output data at a higher transmission rate (500Kbps) to control of up to 2 Universes per port for DMX500K-compatible fixtures. IMPORTANT: DMX500K is incompatible with standard DXM512-A fixtures and does not conform to ANSI E1.11 – 2024. Do not use Overdrive Mode with unsupported fixtures. ENTTEC’s DMX Neon Flex is a compatible fixture supporting Overdrive Mode.
• Item weight: 0.24 pounds
• Compatible devices: Desktop
• Data link protocol: IEEE 802.3

PartNumber: 71030

Details: Next-generation Ethernet to DMX/RDM gateway with traditional DMX512-A compatibility, and additional Overdrive Mode for unique DMX500K support. The DIN Ethergate Mk2 is a robust and reliable installation-grade DMX node engineered to take any architectural, commercial, or entertainment project to the next level. With 2 Universes of bi-directional DMX to standard DMX512-A conversion and ArtRDM support, the DIN Ethergate Mk2 is a flexible, cost-effective method to connect physical DMX devices to your network infrastructure. Unlock enhanced performance with Overdrive Mode*; outputting at a higher data transmission rate of 500Kbps to control up to 1,024 channels per port (4 Universes). *Feature only works with DMX500K-compatible fixtures. Enjoy effortless daisy-chaining with dual Ethernet ports, one featuring Power over Ethernet (PoE). This provides a flexible and streamlined wiring solution, ideal for scalable installations. The configuration as well as the firmware updates are managed through the user-friendly localhost web interface to simplify commissioning from any computer on your network. Designed for ease, the slim, 4 DIN-module electrically insulated housing supports TS35 DIN and surface mounting, with user-friendly pluggable terminal blocks for simple wiring. Product Features: Easy web page configuration: The configuration is managed through the localhost web interface to simplify commissioning and updates as well as to allow the DIN Ethergate Mk2 to be configured from any computer on your network. Flexible power options: Power the DIN Ethergate using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input. NOTE: when daisy-chained in series, only the first device will receive PoE. Subsequent devices require PoE injector individually to be powered via an Ethernet port. Time-saving + installer-friendly: Our Ethernet to DMX converter is packed with installer-friendly features including pluggable terminal connectors and inbuilt DMX termination to simplify wiring. Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the web interface to troubleshoot your installation. Upon receiving power, the device is ready to go within seconds. Sync mode: All ENTTEC Ethernet hardware accepts sACN Sync as well as ArtSync to fully synchronize Art-Net data for all output ports and across your installation when receiving Art-Net from the same source. Choice of mounting options: Featuring a 4-DIN-module electrically-insulated housing, the DIN Ethergate MK2’s slim form includes a DIN-rail clip enabling attachment to a TS35 DIN-rail alongside the option to wall mount the device in any orientation. Overdrive Mode: Output data at a higher transmission rate (500Kbps) to control of up to 2 Universes per port for DMX500K-compatible fixtures. IMPORTANT: DMX500K is incompatible with standard DXM512-A fixtures and does not conform to ANSI E1.11 – 2024. Do not use Overdrive Mode with unsupported fixtures. ENTTEC’s DMX Neon Flex is a compatible fixture supporting Overdrive Mode. Technical Specifications: Input voltage 12-24V DC Max. power draw 7W Max. heat dissipation 7W Operating temperature 0C to 50C /32F to 122F Operating humidity 5 to 95% (non-condensing) Data input eDMX (Art-Net, sACN, ESP or KiNet protocols) via 2 x RJ45 ports Data output DMX512-A/RDM (250 Kbps) / DMX500K (500 Kbps) – via 2 x 4-pin Phoenix ports Max. channels DMX512-A: 1,024 (2U) / DMX500K: 2,048 (4U) DMX & RDM timings break time: 300ms / Mark after break (MAB): 15ms Art-Net merging 2 sources Max. refresh rate 44FPS Network speed 10/100Base-T Power over Ethernet IEEE 802.3af Network configuration static (default 192.168.0.10) / DHCP Firmware updates via web interface Body material ABS plastic IP rating IP20 LED indicators forward-facing status LED plus network link/activity (integrated into RJ45 ports) Mounting options surface & TS35 DIN-rail mount Unit dimensions 100.5mm x 72.25mm x 34mm Unit weight 0.11kg / 0.24lbs Warranty 3-year return to the base manufacturer warranty Compliance RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)

EAN: 9351074005752

Model: Din Ethergate

Item Condition: New
